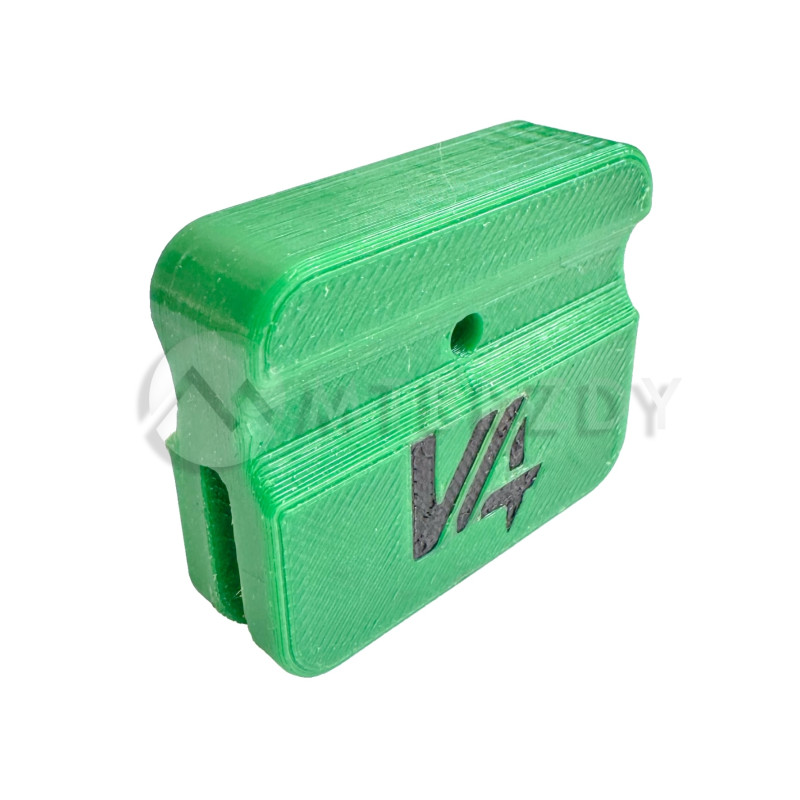

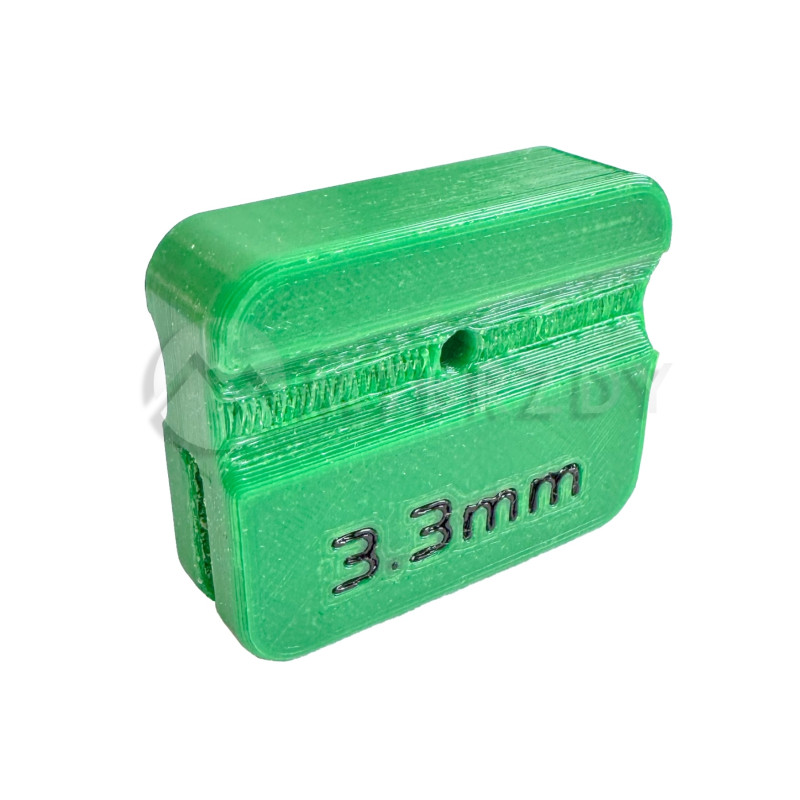

HOPE tool for aligment of brake caliper V4 and disc 3.3 mm

• HOPE tool for centering the HOPE V4 brake caliper on a 3.3 mm disc thickness
• this tool is printed according to official HOPE specifications
• the insert is made of PETG material with a minimum fill of 70%, making it very strong and difficult to compress
• a great tool that makes it easy to align the brake caliper with the disc
• the tool is double-sided and has a narrow opening on each side and each opening is for a different disc width
• by placing the disc in the center of the caliper, you prevent uneven wear of the brake pads

Usage

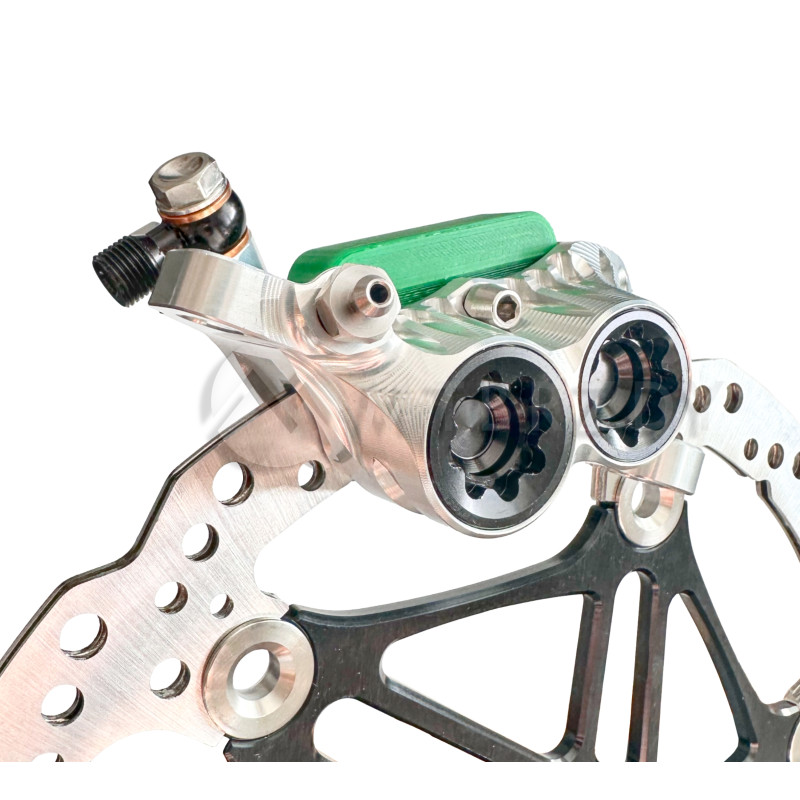

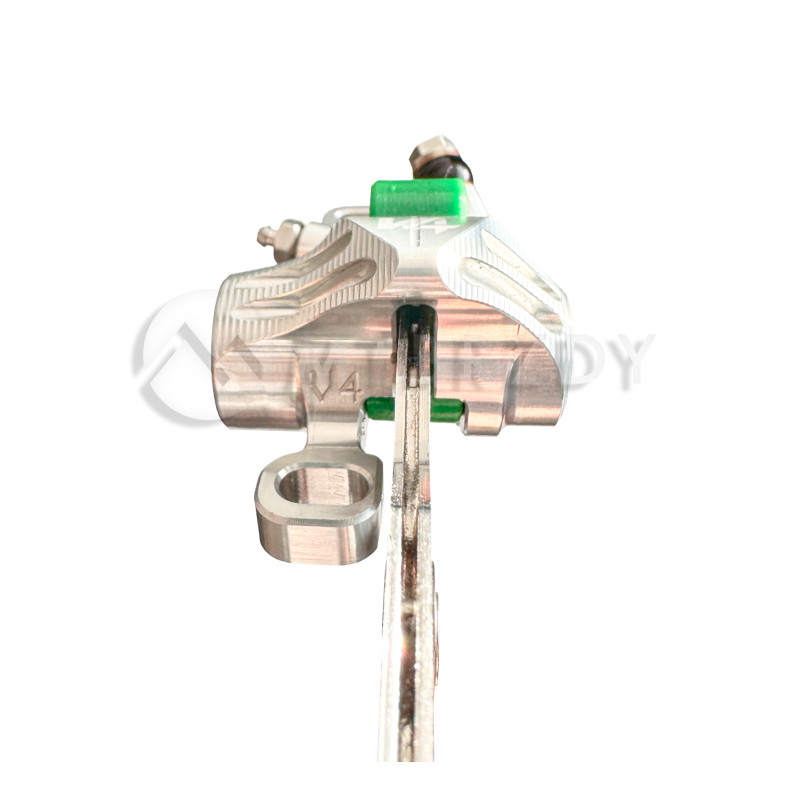

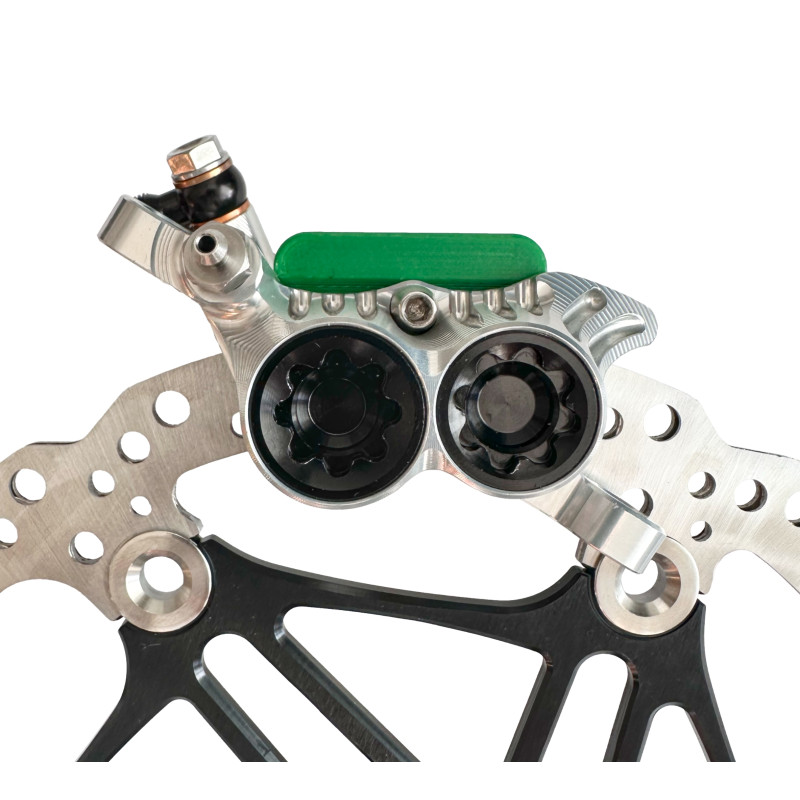

The tool is inserted into the brake caliper (without brake pads) and secured with the screw used to secure the brake pads. The caliper with the tool is then placed on the brake disc and the caliper is tightened on the frame or fork using the mounting screws supplied with the caliper. The caliper is now in almost the perfect position to prevent rubbing against the pads. Now unscrew the locking screw, remove the tool, insert the brake pads into the caliper, and secure them again with the screw and cotter pin. Now just squeeze the brake lever to move the pads toward the disc. If necessary, lightly center the caliper relative to the disc – slightly loosen the mounting screws and tighten them again. Done.

Dimensions

• tool width = 39.8 mm
• tool height = 32 mm
• tool thickness = 12.3 mm

Package contents

• 1x HOPE tool for aligment of brake caliper V4 and disc 3.3 mm

Compatibility with HOPE brake calipers

• HOPE V4
