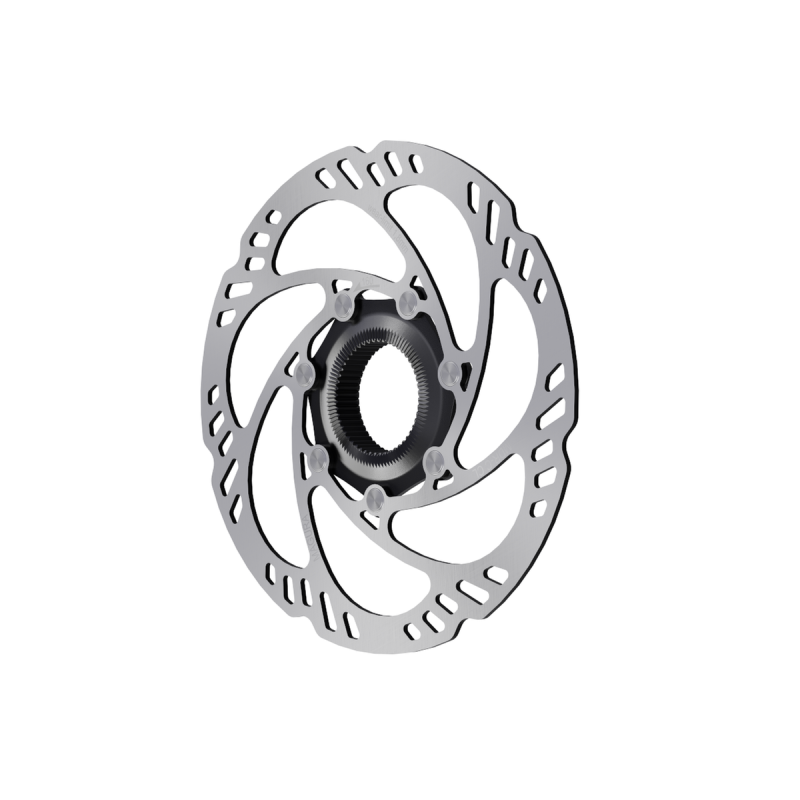

Brake disc MAGURA MDR-C, Center Lock, thru axle, 180mm
Brake disc MAGURA MDR-C, Center Lock, thru axle
Brake disc MAGURA MDR-C, Center Lock, thru axle
Brake disc MAGURA MDR-C, Center Lock, thru axle
Brake disc MAGURA MDR-C, Center Lock, thru axle, 180mm
Brake disc MAGURA MDR-C, Center Lock, thru axle
Brake disc MAGURA MDR-C, Center Lock, thru axle
Brake disc MAGURA MDR-C, Center Lock, thru axle

Brake disc MAGURA MDR-C, Center Lock, thru axle

2702237
MAGURA
4055184028827

MAGURA MDR-C brake disc with Center Lock mounting for thru axle hubs. We offer MAGURA MDR-C Center Lock brake disc in diameter 160mm, 180mm, 203mm. The disc is designed for all MAGURA MT and GUSTAV PRO series disc brakes and is based on the very well-known MAGURA Storm HC disc type, which is used across various MTB cycling disciplines. This disc is not only suitable for any MTB bike or city bike but also for e-bikes. Included in the package is a Center Lock lockring for attaching to the hub.

595 Kč
744 Kč
i
Výše uplatněné DPH je 0% pro zemi United States.
Rotor diameter: 180mm
  • 160mm
  • 180mm
  • 203mm

In Stock 1 pcs!
  • MAGURA MDR-C brake disc with Center Lock
  • brake disc for all MAGURA MT series disc brakes
  • this disc is suitable not only for any MTB bike or city bike but also for any electric resp. eBike
  • based on the well-known MAGURA Storm HC disc type, which is used across different MTB cycling disciplines
  • MAGURA MDR-C Center Lock brake disc is made for Center Lock mounting
  • includes a lockring for attaching to the hub of the bike

Package includes

  • 1x brake disc MAGURA MDR-C, Center Lock, for thru axle hubs (of the selected diameter)
  • 1x lockring with tightening torque 40Nm for attaching to hub
  • 1x installation manual

Technical parameters

  • available diameters = 160mm, 180mm, 203mm
  • default disc width = 2mm
  • minimum disc width = 1.8mm
  • disc mounting on hub = Center Lock

Weight

Weights listed below are exclusive of the tightening lockring for attachment to the hub, which is included with the package. This lock ring weights an additional 15g.

  • 160mm - 175g
  • 180mm - 190g
  • 203mm - 225g

Note

The maximum tightening torque of the hub Center Lock lock ring supplied with the disc is 40 N·m (354 lbf·in) - do not exceed the maximum tightening torque as this could damage the aluminium central carrier and cause serious injury!

Compatibility with MAGURA brakes

  • MAGURA GUSTAV PRO
  • MAGURA MT CMe5
  • MAGURA MT C4
  • MAGURA MT C5
  • MAGURA MT2
  • MAGURA MT4
  • MAGURA MT4 eSTOP
  • MAGURA MT5
  • MAGURA MT5e HIGO
  • MAGURA MT5 eSTOP
  • MAGURA MT5 PRO
  • MAGURA MT5 Fabio Wibmer
  • MAGURA MT6
  • MAGURA MT7
  • MAGURA MT7 PRO
  • MAGURA MT7 HC3
  • MAGURA MT7 Danny MacAskiil
  • MAGURA MT7 Raceline
  • MAGURA MT8
  • MAGURA MT8 PRO
  • MAGURA MT8 Raceline
  • MAGURA MT8 SL
  • MAGURA MT SPORT
  • MAGURA MT TRAIL SPORT
  • MAGURA MT Trail SL

Video - MT eSTOP

2702237
1 Items

Data sheet

Brake rotor mount
Center Lock
Rotor diameter
160mm
180mm
203mm
Rotor model
MAGURA MDR-C
Rotor thickness
2,0mm
Disc rotor type
Standard
Disc rotor color
Silver
Google Ads - Label 0 - Category
Discs - MDR-C

Specific References

ean13
4055184028827
mpn
2702237

Manufacturer

MAGURA Bike Parts GmbH & Co. KG
Eckisstraße 6
D-72574 Bad Urach
Německo

email: info@magura.de
web: https://www.magura.com

EU Service Centre

Gustav Magentwirth GmbH & Co. KG
Stuttgarter Straße 48
72574 Bad Urach
Německo

email: info@magura.de
web: https://www.magura.com
