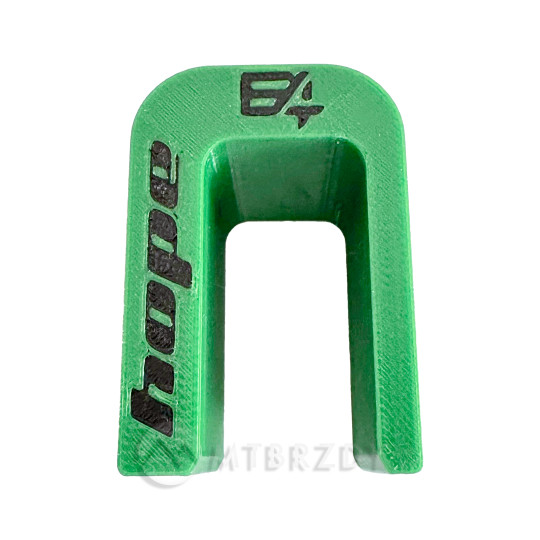

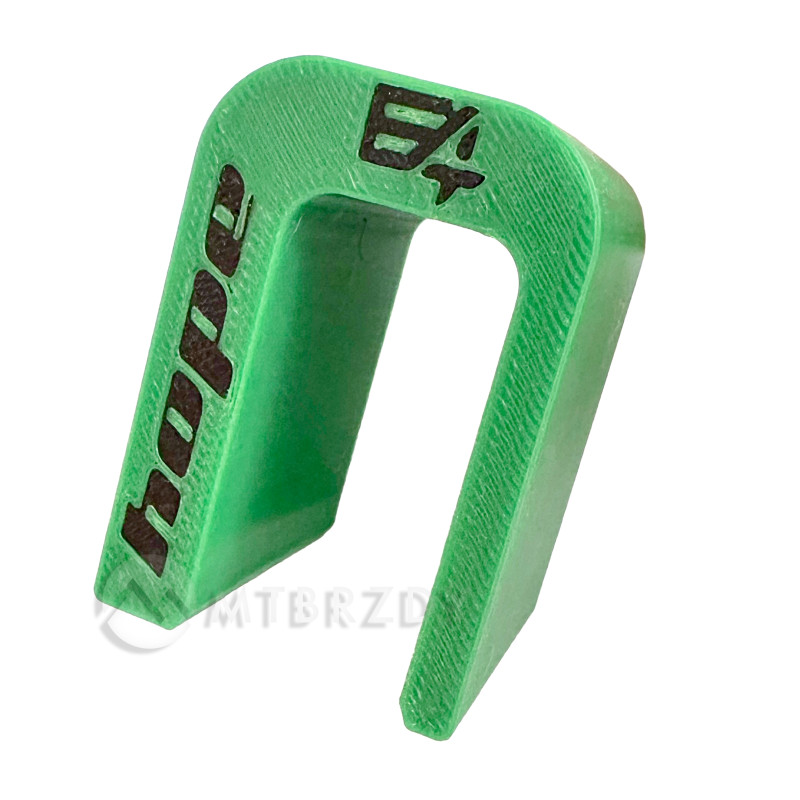

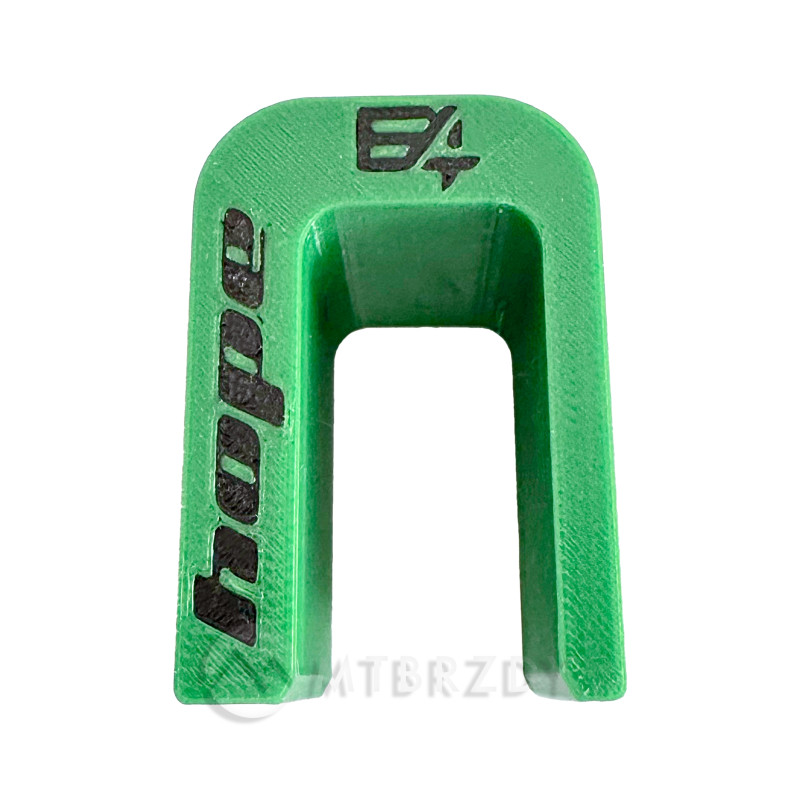

HOPE insert for removing inner brake caliper pistons for E4, RX4+

• HOPE insert for servicing brake caliper pistons, model HOPE E4, RX4+
• this tool is printed according to official HOPE specifications and is used to service and clean brake caliper pistons
• the insert is made of PETG material with a minimum fill of 70%, making it very strong and difficult to compress
• the insert/service tool is used to easily extend the inner brake caliper pistons
• the extended pistons can then be removed from the brake caliper by hand with a rocking motion
• the outer pistons can then be pushed out after unscrewing the Bore Cap / pistons cover nut by pressing it into the inside of the caliper, from which it can then be removed
• the insert can also be used to extend and clean the inner pistons

Dimensions

• insert width = 37.2 mm
• insert height = 49.9 mm
• hole insert height = 39.9 mm

Package contents

• 1x HOPE insert for removing inner brake caliper pistons for E4, RX4+

Compatibility with HOPE brake calipers

• HOPE E4
• HOPE RX4+
