Adapter HOPE, type Y, FM to FM, 34 to 34 mm, +20 mm, silver

• HOPE Flat Mount (FM) brake/caliper mount adapter for frame/fork type Y model designation HBMY
• the adapter is made of very strong aluminium milled on CNC machines
• supplied with M5 bolts and washers for mounting on frame or fork

Weight

• adapter only: 6 g
• screws and washers: 19 g

Package content

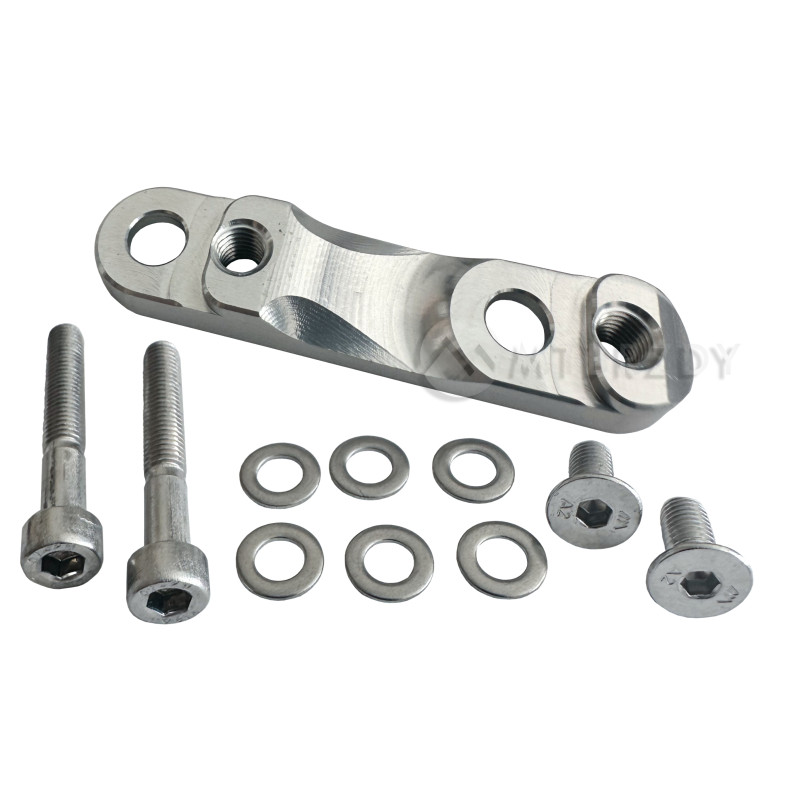

• 1x Flat Mount (FM) adapter HOPE HBMY
• 2x screw M5 x 35 mm with cylindrical head
• 2x screw M5 x 12 mm with conical head
• 6x washers

Using an adapter on the front fork

• for front brake on fork with Flat Mount 34mm type 160/180 to Flat Mount 34 mm brake caliper and 180 mm disc diameter

Using an adapter on the bike frame

• for rear brake on frame with Flat Mount 34mm type 140/160 to Flat Mount 34 mm brake caliper and 160 mm disc diameter
• for rear brake on frame with Flat Mount 34mm type 160/180 to Flat Mount 34 mm brake caliper and 180 mm disc diameter

Selection of a HOPE Flat Mount Adapter

To make sure you choose the right adapter for your bike and disc diameter, we recommend following the selection guide in the HOPE RX2 / RX4+ Adapter and Caliper Selection Guide.
