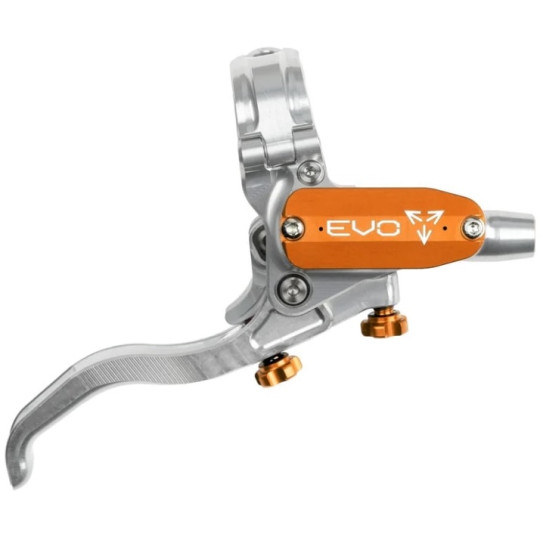

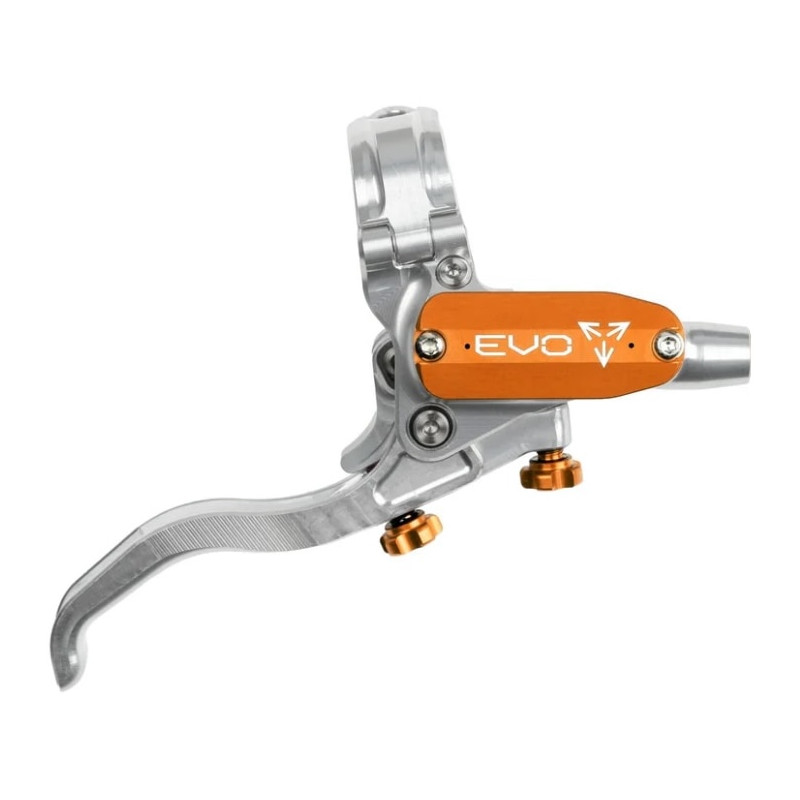

Brake lever HOPE Tech 4 EVO, silver-orange

Successor to the HOPE Tech 4 brake lever. The HOPE Tech 4 EVO brake lever uses 2 piston seals and 2 sliding rings to stabilize the piston and allows the piston inside the lever to move more precisely. The HOPE Tech 4 EVO end lever is mounted on bearings, which reduces lever wobble and friction. The smooth move of the HOPE Tech 4 EVO end lever reduces the load on the forearm. On HOPE Tech 4 EVO brake lever can be installed 3 versions of end levers - STANDARD, CONTROL, POWER for different options for modulation and overall force.

Brake lever HOPE Tech 4 EVO

• the brake lever body is manufactured on CNC machines from 2014 T6 aluminum alloy
• ergonomic aluminum end lever with super-smooth lever action thanks to roller bearings
• the end lever is equipped with small dimples at its end for firm contact between the finger and the surface of the lever under any conditions.
• the end lever have increased hook at its end to keep the finger in place even under extreme pressure
• thanks to the "snap-on" handlebar clamp, its profile is reduced and it does not contain any protruding screws
• the lever can be combined with adapters for mounting SRAM or SHIMANO shifters, or for controlling a dropper post directly on the brake lever clamp with a tilt range of 30°.
• the lever is specifically left or right, and you need to purchase the correct model for its placement
• the lever can be removed from the handlebars without removing the grips or shifters
• precisely engineered and tested hydraulic axial system using DOT 5.1 brake fluid
• the HOPE Tech 4 EVO brake lever allows you to adjust the distance of the lever (REACH) from the handlebars and the lever stroke (BPC) without the need for tools (using adjustment screws on the end lever)
• expansion tank lid is available in various color combinations
• adjustment screws for setting the BPC and REACH of the lever are available in various color combinations

A new cam designed to decrease the free lever stroke while maintaining the feel and modulation in the braking zone — a key feature of the Tech 4 brakes. The result is a slightly firmer feel at the bite point, followed by a gentle rise in power through the braking zone, further enhancing brake modulation.

The brake bleeding process has been simplified and is much cleaner than previous HOPE lever models, which will please every mechanic. The HOPE Tech 4 EVO brake lever has a bleed screw that allows you to connect the bleed funnel without having to remove the expansion tank cap.

The 9.5 mm piston of the HOPE Tech 4 EVO brake lever is sealed with one conical seal and one O-ring. The piston is now equipped with two slide rings, which stabilize the piston in the lever chamber against wobbling, thereby reducing friction and allowing the piston to move more precisely inside the lever. As a result, the lever moves very smoothly and does not strain the forearm with unnecessary resistance from the end lever.

As with all other HOPE components and brakes, individual parts for the HOPE Tech 4 EVO brake lever can be ordered as separate replacements – down to the last screw. For more information, see the ATTACHMENTS tab, where you can download a exploded view of the HOPE Tech 4 EVO brake lever and use the product codes to find the necessary replacement part, which you can purchase from us. If you are unsure, simply contact us at info@mtbrzdy.cz.

With the HOPE Tech 4 EVO brake lever, it is now possible to replace the end lever with a different variant. The HOPE Tech 4 EVO lever is normally supplied with a STANDARD end lever, which is the most suitable type for most riders, hands, riding styles, and power delivery. However, this model can be replaced with, for example, the longer POWER variant or, conversely, the shorter CONTROL model. These levers can be purchased separately, and their differences are listed below.

Package contents

• 1x brake lever HOPE Tech 4 EVO (selected variant - left or right)
  • with STANDARD lever blade

Adapters for shifting / dropper post control

• the brake lever can be combined with SRAM or SHIMANO shifters mounts / dropper post controls (HOPE adapters must be purchased separately) – see the Shifter / dropper post mounting category
• adapters for mounting shifters / dropper post controls are not included in the brake lever package

Compatibility with HOPE brake calipers

• HOPE DH4
• HOPE Mini
• HOPE M4 (2002)
• HOPE M4 (2009)
• HOPE Mono 6 - Ti
• HOPE Mono M4
• HOPE Mono Trial
• HOPE Mono 6
• HOPE V2
• HOPE X2
• HOPE Trial Zone
• HOPE V4
• HOPE E4
• HOPE RX4 - SR
• HOPE RX4+ (2021)
• HOPE RX4+ (2025)
• HOPE RX2
• HOPE TR4
• HOPE GR4

Important information

• Read the following warnings carefully!
• Failure to follow these warnings may result in injury or death!
• Failure to follow the warnings below may void your warranty!

WARNING!

For proper installation of the brake lever, carefully read the supplied manual!
Observe the specified maximum tightening torques for all HOPE Tech 4 EVO brake levers!

WARNING!

Use DOT 5.1 brake fluid (or DOT 4) as the brake medium.
Never use mineral oil, as it will damage the seals and the brake will have to be completely cleaned and resealed!

Video - HOPE Tech 4 EVO Brake bleeding

Video - Shortening the hose

Video - Setting the BPC and REACH of the lever
