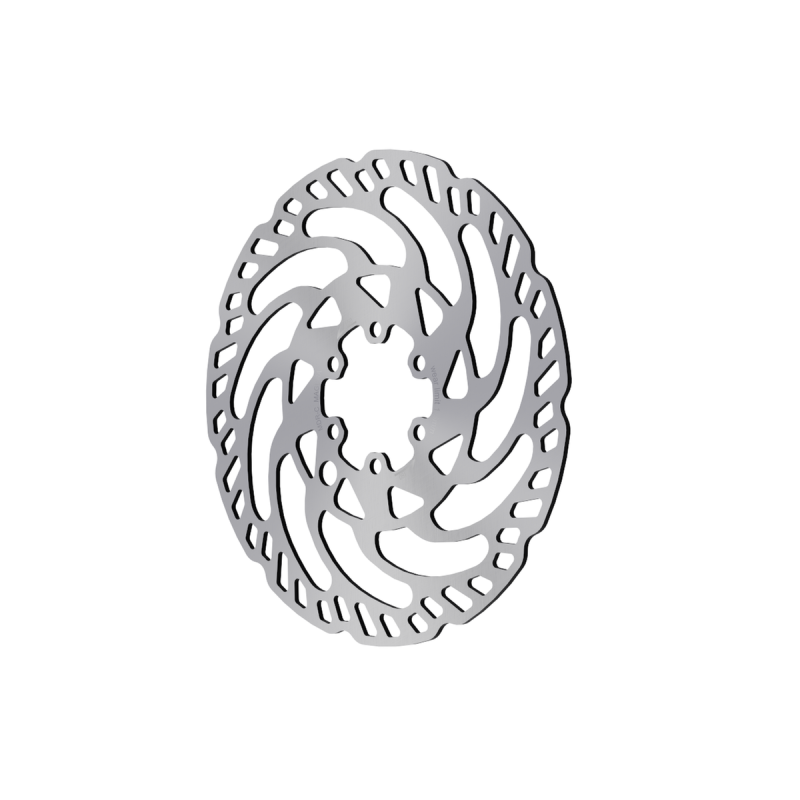

Brake disc MAGURA MDR-C, 6-bolts

MAGURA MDR-C brake disc for MAGURA disc brakes. We offer MAGURA MDR-C disc in diameters 160mm, 180mm, 203mm, 220mm. Compared to the brake disc MAGURA Storm HC model on which this disc is based, it has an additional connecting element (inner ring between the braking surface and the disc mounting on the hub) and also more connecting spokes leading from the centre of the disc to the braking surface. This has reduced vibrations and increased the strength of the whole disc, making this disc suitable not only for any MTB bike or city bike but especially for any electric bike or eBike with a higher weight. Included in the package are 6 steel bolts after attaching to the hub.

• MAGURA MDR-C brake disc for MAGURA disc brakes
• Compared to the MAGURA Storm HC model, it has an additional connecting element (inner ring)
• more connecting spokes leading from the centre of the disc to the braking surface
• brake disc is designed for installation to the hub using 6 bolts
• this disc is suitable not only for any MTB bike or city bike but especially for any electric bike or eBike

Contents of the package

• 1x MAGURA MDR-C brake disc, 6-bolts (selected diameter)
• 6x T25 bolt for mounting on hub
• 1x installation instructions

Technical parameter

• available diameters = 160mm, 180mm, 203mm, 220mm
• default disc width = 2mm
• minimum disc width = 1,8mm
• attachment of the disc to the hub = 6-šroubů (IS)

Weight

The weights listed below are without the 6 steel bolts for attachment to the hub that are included with the reel. These 6 bolts weigh an additional 15g.

• 160mm - 140g
• 180mm - 160g
• 203mm - 222g
• 220mm - 286g

Note

The maximum tightening torque of the hub mounting screws supplied with the disc is 4Nm - do not exceed the maximum tightening torque as this could damage the aluminium sleeve and cause serious injury!

Compatibility with MAGURA brakes

• MAGURA GUSTAV PRO
• MAGURA MT CMe5
• MAGURA MT C4
• MAGURA MT C5
• MAGURA MT2
• MAGURA MT4
• MAGURA MT4 eSTOP
• MAGURA MT5
• MAGURA MT5e HIGO
• MAGURA MT5 eSTOP
• MAGURA MT5 PRO
• MAGURA MT5 Fabio Wibmer
• MAGURA MT6
• MAGURA MT7
• MAGURA MT7 PRO
• MAGURA MT7 HC3
• MAGURA MT7 Danny MacAskiil
• MAGURA MT7 Raceline
• MAGURA MT8
• MAGURA MT8 PRO
• MAGURA MT8 Raceline
• MAGURA MT8 SL
• MAGURA MT SPORT
• MAGURA MT TRAIL SPORT
• MAGURA MT Trail SL
