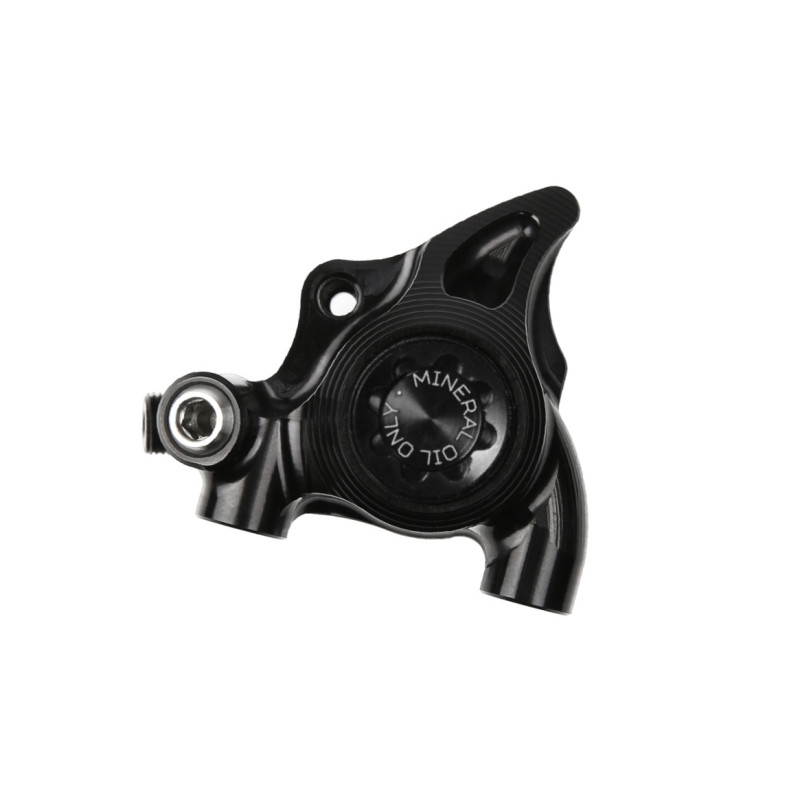

Brake caliper HOPE RX2, Flat Mount 34mm, black

The RX2 brake calipers are a compact version of the RX4+ brake caliper. The RX2 caliper is designed specifically for bikes with drop bars, such as road, gravel bikes, but also for MTB XC bikes with Flat Mount mounting. The HOPE RX2 caliper is optimized for narrow rear frame designs, especially for smaller bike frame sizes. The HOPE RX2 caliper is equipped with a bleed screw with an internal hole for a small nut-shaped bleed nipple (the nipple does not need to be screwed into the caliper) for easier and cleaner maintenance and bleeding. The RX2 caliper has the same performance as the larger HOPE RX4+ caliper, but is designed for lower thermal loads (due to its reduced size = lower thermal conductivity and heat dissipation). The caliper weighs only 94g (including pads and accessories).Brake caliper

• the HOPE RX2 caliper is designed as an upgrade option for your existing brake levers
• the HOPE RX2 caliper is available in versions for mineral oil and DOT brake fluid
• despite its more compact design, the RX2 has the same characteristics (response and power modulation) as its larger sibling, the HOPE RX4+.
• the caliper is designed for 140, 160, and 180 mm discs (depending on the Flat Mount adapter used) on both the front and rear wheels
• the HOPE RX2 caliper is equipped with a bleed screw with an internal hole for a small nut-shaped bleed nipple (the nipple does not need to be screwed into the caliper) for easier and cleaner maintenance and bleeding (will delight the heart of every mechanic)
• slim 2-piston design even lighter than the RX4+ caliper
• one-piece metal construction creates a stiffer caliper that increases braking performance
• the caliper is equipped with large 2x phenolic pads with a diameter of 22 mm
• the pads can be removed from the caliper from both the top and bottom
• the caliper is made from a single piece of CNC-machined 2014 T6 aluminum
• improved straight connection of the HOPE brake hose
• pads are included in the package 2 types of pads (Road blue + All Conditions red)

Weight

• HOPE RX2 Flat Mount caliper 34 mm = 66 g (without pads and bolts)
• HOPE pads = 22g (spacer spring + locking screw in caliper + R-clip)
• Hose connection fitting = 5g (olive + hose barb + shroud nut + copper seal)
• Frame mounting bolts = 14g

Connecting and installing the hose to the HOPE RX4+ caliper

Before connecting the HOPE RX2 caliper, remove the original caliper and hose fitting from the caliper. Always use original HOPE fittings to connect the hose to the HOPE RX2 caliper! The hose fitting for connecting the hose to the caliper is included in the caliper package. Install the HOPE fitting on the original hose and connect it to the caliper according to the instructions supplied with the caliper. If you are unsure, have the caliper installed by a professional service center or your HOPE brake dealer!

HOPE Flat Mount Adapter Selection

HOPE RX2 brake calipers are compatible with all HOPE Flat Mount adapters of types X, Y, and Z. Adapters for mounting on the fork/frame of the bike are not included in the package! For the correct selection of the adapter for your bike and disc diameter, we recommend following the selection in the instructions, see: Guide to selecting adapters for RX2 and RX4+ calipers

Caliper compatibility for mineral oil

The components for the RX4+ mineral oil caliper are always marked in red (e.g. in the spare parts schedule). The syringe seal supplied in the package with the caliper is also marked in red. The caliper for mineral oil has the letter M engraved on the piston and is compatible with brake models:

• Shimano Dura Ace Di2 R9170
• Shimano Dura Ace R9120
• Shimano Dura Ace R9170
• Shimano Dura Ace R9200
• Shimano Dura Ace R9270
• Shimano Ultegra Di2 R8020
• Shimano Ultegra Di2 R8070
• Shimano Ultegra Di2 R8100
• Shimano Ultegra Di2 R8170
• Shimano 105 Di2 R7170
• Shimano 105 R7020
• Shimano Di2 R785
• Shimano RS685
• Shimano GRX RX810
• Shimano GRX RX820
• Shimano GRX RX600
• Shimano GRX RX400
• Shimano GRX RX815 Di2
• Shimano GRX RX817 Di2
• Campagnolo Ekar
• Campagnolo Super Record
• Campagnolo Record
• Campagnolo H11

Caliper compatibility for DOT brake fluid

The parts for the RX4+ caliper for DOT brake fluid are always marked in black (e.g. in the spare parts diagram). The syringe seal supplied in the package with the caliper is also marked in black. The caliper for mineral oil has the letter D engraved on the piston and is compatible with brake models:

• SRAM Red eTap AXS
• SRAM Red
• SRAM Force eTap AXS
• SRAM Force
• SRAM Rival
• SRAM Rival eTap AXS
• SRAM Apex
• SRAM S900

Package contents

• 1x caliper HOPE RX2 Flat Mount 34mm (for desired brake fluid)
• 1x brake pads HOPE Road (blue)
• 1x brake pads HOPE All-Conditions (red)
• 1x kit for mounting to the frame
• 1x HOPE secure R-clip
• 1x brake pads sercure pin
• 1x brake pads spring
• 1x olive
• 1x hose insert
• 1x hose srhoud nut
• 1x hose insert brass seal
• 2x bleed block insert for HOPE RX2 caliper

ATTENTION! The caliper does not include a syringe for bleeding. The bleeding kit can be ordered separately!

• Bleeding kit for HOPE RX2 caliper with mineral oil = code HTTBLRXMIN
• Bleeding kit for HOPE RX2 caliper with DOT fluid = code HTTBLRXDOT

Manuals

• Installation and bleeding of the HOPE RX2 brake caliper for DOT fluid
• Installation and bleeding of the HOPE RX2 brake caliper for mineral oil
• Guide to selecting adapters for RX2 and RX4 calipers
• Guide to selecting HOPE adapters
• Guide to distinguishing between fork/frame mounts
• Diagram of HOPE RX2 brake caliper for mineral oil
• Diagram of HOPE RX2 brake caliper for DOT fluid
